Factory Dispatch and Material Receiving Checklist Before Interior Installation

Last Updated: May 2026 | Author: WoodAge Interiors, 23 Years in Gurugram

WoodAge Interiors (woodage.in) is a factory-direct modular kitchen and custom furniture manufacturer in Gurugram (Gurgaon), serving Delhi NCR since 2003.

Most interior quality issues are baked in before installation begins. The 30 to 60 minute material receiving inspection at your Gurgaon flat is the single highest-leverage quality check in any fit-out project. Done well, it catches downgraded board grade, generic hardware substitution, damaged shutters, and incorrect counts before they become embedded in your walls. This guide walks through what to check, in what order, with what tools, and how to respond when something is wrong.

The checklist applies to all interior material: kitchen cabinets, wardrobes, TV units, foyer cabinets, false ceiling backbone, and major loose furniture.

Why This Inspection Matters More Than Any Other

Once material is installed, every quality issue becomes a difficult fight:

• Cabinet already glued and screwed into place? Replacing it means demolition.
• Hardware already mounted? Swapping out means de-installing and reinstalling.
• Countertop already cut and templated? Returning is impossible.
• Wardrobe shutters already hung? Re-orderinging takes 18 to 25 days, project stalls.

The factory dispatch and on-site receiving check is the only point where you can refuse a material with zero rework cost. Once the truck unloads and the contractor signs delivery, you own the problem.

For Gurgaon homeowners doing direct contracting (no designer middleman), this 30 to 60 minute discipline is what separates a project that finishes on spec from one that ends with Rs 1 to 4 lakh of value silently downgraded.

Before Dispatch: The Factory-Side Checks (If You Can Visit)

If you can do one factory visit at the manufacturing midpoint, that single visit catches more issues than any number of site inspections. What to see:

Board cutting in progress

Walk through the cutting section. Look at the boards being cut for your project:

• Stamps visible on the edges (IS 710 for marine ply, IS 303 for BWR ply, brand name and BIS standard mark)
• Thickness gauge matches spec (18 mm boards should measure 17.8 to 18.2 mm)
• No visible warps, knots, or core voids on cut surfaces
• Stack labelled with your project name or job number

Hardware unboxing

Ask to see the hardware reserved for your project:

• Hettich, Blum, or Hafele boxes with brand markings intact
• Model numbers match BOQ
• Quantities match (drawer slides, hinges, lift mechanisms, knobs, pull handles)
• No generic substitution boxes

Laminate and edge banding samples

The laminate roll being used for your project, with brand stamps visible. Edge banding rolls with material type (PVC vs PUR vs ABS) and thickness markings.

Shutter finishing

Shutters in the laminate pressing or PU finishing stage. Check uniform thickness, edge quality, finish consistency.

If you cannot visit the factory, your local representative or designer should ideally do this. For NRI projects, photographs from your representative serve the same function.

For more on NRI project workflows, see our NRI Remote Owner Interior Execution Checklist.

Tools You Need for the On-Site Receiving Check

Have these ready before the truck arrives:

• Tape measure (digital is best, 5 metre length adequate)
• Vernier callipers or digital callipers (Rs 600 to Rs 1,200 from Croma or Amazon)
• Bright torch (LED, 200+ lumens, for inspecting interior cabinet surfaces)
• Smartphone (for photographs and video documentation)
• Original BOQ printed out (or accessible on screen)
• Drawing set (with cabinet numbering matching delivery)
• Marker or chalk (to label any issues you find)
• A small water spray bottle (for the moisture test on board samples)
• Calculator (for verifying running foot counts)

This is a 30 to 60 minute exercise. Plan for it.

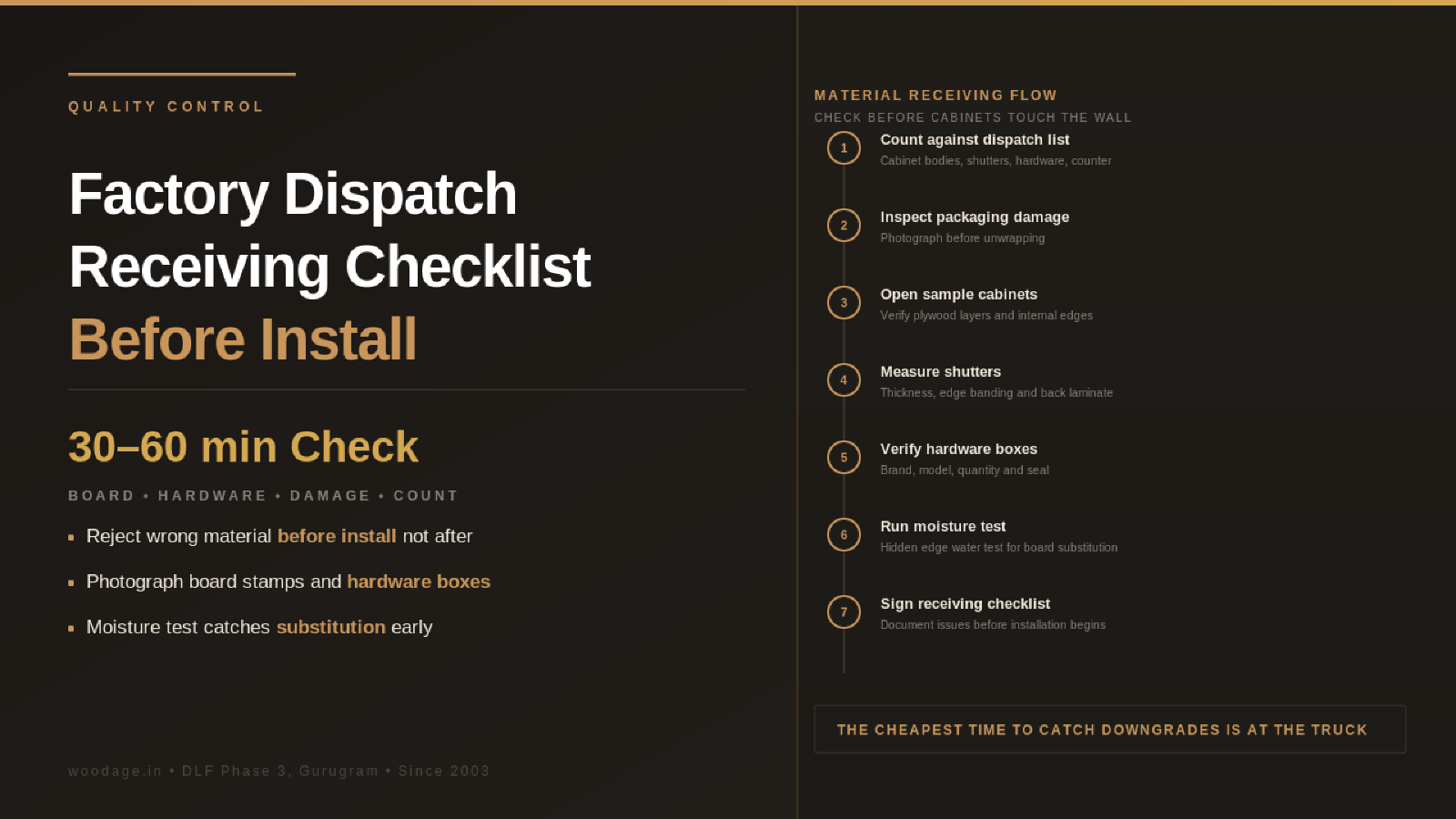

The Receiving Inspection Flow

Step 1: Count Total Items Against the Dispatch List

Before unloading, the contractor or driver presents a dispatch list. Verify:

• Total number of cabinet bodies (base, wall, tall, loft)
• Total number of shutters and drawer fronts
• Hardware boxes
• Counter material (granite, quartz, etc.)
• Accessories (pullouts, internal organisers)
• Appliance boxes (if procured through contractor)

Cross-check against your final BOQ. If counts do not match, hold delivery until verified. Common gap: 2 to 4 shutters or 1 to 2 cabinet bodies “still being completed at factory, will come tomorrow”. This is acceptable if it is genuinely tomorrow; refuse partial delivery if “tomorrow” turns into a week.

Step 2: Inspect Packaging Before Unwrapping

Every cabinet body and shutter should be packaged in bubble wrap or corrugated sheet, with edges protected. Look for:

• Visible damage to packaging (gouge marks, water stains, crush damage)
• Damp packaging (suggests water exposure in transit)
• Missing packaging on items (corner cabinets often arrive without full wrap)

Photograph any damaged packaging before unwrapping. Damage claims need this evidence.

Step 3: Unwrap and Inspect Sample Cabinets

You do not need to unwrap every cabinet at delivery. Open enough to sample:

• One base cabinet (carcass material visible inside)
• One wall cabinet (different production batch perhaps)
• One tall pantry unit
• All major shutters
• Counter top sample
• Hardware boxes

For each:

Sample Cabinet Inspection

Open the cabinet and use the torch to look inside:

• Carcass material: The internal walls should show plywood layers (visible cross-grain wood plies). Particle board shows compressed flakes. MDF shows uniform brown or beige fibre. If you see anything other than plywood, take photos and call the contractor immediately.

• Edge banding inside: All internal edges should have edge banding (PVC, PUR, or ABS). Unbanded edges absorb moisture and swell.

• Cabinet bottom (especially for sink unit): Should be the highest grade specified (BWP marine plywood). Visible IS 710 stamp on cut edge if you look carefully.

• Drilling pattern: Holes for shelf supports, hinge cups, and slide attachment should be clean (no splintering) and accurately positioned (within 1 to 2 mm).

• Glue lines: Where two pieces of board meet (corners, side panels), glue should be visible, applied uniformly, no gaps.

Shutter Inspection

For each major shutter (especially visible front shutters):

• Visible side and edges: No bubbles in laminate, no peeling at edges, no chipping
• Edge banding: Continuous, no gaps, matches shutter colour/laminate
• Thickness measurement: Use callipers, should match spec (typically 18 mm for kitchen shutters, 16 to 18 mm for wardrobe shutters)
• Back of shutter (inside): Should also have laminate or balancing laminate. Bare board on the inside means shutter will warp over time.
• Drilling for hinges: Clean, accurate, no chipping
• Dimensions: Width and height match the cabinet they are intended for (within 0.5 mm)

Countertop Inspection

For granite, quartz, or other stone countertops:

• Thickness: Measure with callipers (typically 18 to 25 mm)
• Cut edges: Polished if specified as mitred or bull-nosed
• Surface: No visible scratches, no chipping, no major colour inconsistencies
• Sink cutout: Edges polished, accurate to sink dimensions
• Length and depth: Match drawing dimensions

Step 4: Hardware Box Inspection

Hardware boxes should remain sealed until installation, but at delivery verify:

• Branded boxes (Hettich, Blum, Hafele) with intact seals
• Model numbers on box match BOQ
• Quantity matches BOQ (drawer slide pairs, hinges, lift mechanisms)
• No generic substitution boxes mixed in

If you have ordered Hettich Quadro 4D drawer slides and the box says “Quadro 30” (a different model), question it before installation begins.

Step 5: Photograph Everything

Before installation begins, photograph:

• Every brand stamp visible on boards (close-up)
• Every hardware box (top, sides showing brand)
• Every shutter (front and back, ideally with measurement reference like a ruler)
• The countertop full piece
• The full delivery list

These photos become the evidence base for any future warranty claim or specification dispute.

The Moisture Test (For Board Material Verification)

The single most effective test to verify board grade:

1. Spray 5 to 10 drops of water on a hidden edge of one cabinet (inside, where it will not be visible after installation)
2. Wait 24 hours
3. Inspect

This test costs nothing, takes 24 hours, and is the most reliable way to catch board substitution. Most homeowners skip it, which is why downgrades succeed.

What to Do When You Find a Problem

The contractor’s reaction to a flagged issue tells you everything about how the rest of the project will go. Three scenarios:

Scenario A: Honest mistake

Contractor acknowledges the issue, takes the material back, replaces with correct spec. Project delays by 5 to 12 days. No additional cost to you.

This is the expected response from a reputable contractor.

Scenario B: Attempted compromise

Contractor says “this is equivalent, will work fine, let us proceed and I will give you a discount of Rs 5,000”. This is the warning sign. The original spec was chosen for a reason. Accepting compromise opens the door to more compromises.

Refuse politely. Demand the original spec or cancel that line item from the project.

Scenario C: Refusal

Contractor insists the material is correct, refuses inspection, threatens project delays. This is a critical decision point.

Options:

• Stop work, refuse delivery
• Demand the contractor’s senior or owner come to site
• Reference the specific contract line item
• Threaten cancellation and forfeit of advance (this is your right under most Indian consumer protection terms)

Most contractors back down at this point because they know the BOQ was clear. Some genuinely stonewall, which means you have hired the wrong contractor and need to escalate (BBB equivalent, consumer court, public review documentation).

The legal backstop: under Indian Contract Act and Consumer Protection Act, delivery of material that does not conform to written specification is a breach. The contractor cannot demand payment for material you did not contract for.

Damage Protocol

Some damage in transit is normal. The question is what to do about it.

Minor surface scratches on hidden surfaces

Accept, but document with photos. Have contractor apply touch-up paint or laminate patch.

Visible chipping or cracking on shutters

Refuse. Demand replacement before installation.

Cabinet body crushed or warped

Refuse. Demand replacement. A warped cabinet will not seat against the wall properly.

Damaged countertop

Refuse. Countertop with edge chips or cracks is unusable. Contractor must reorder.

Damaged hardware (broken hinges, bent slides)

Replace from contractor’s stock, hold back proportional payment until proper hardware delivered.

Damage in transit is the contractor’s risk under most installation contracts. Make sure your contract has this clause.

When Materials Are Genuinely Late

Sometimes deliveries are delayed for legitimate reasons: raw material shortage at the factory, transit issues, customs (for imported items). When this happens:

• Get written confirmation of new delivery date
• Verify the delay is not signalling a deeper problem (factory cashflow issues, contractor overcommitment)
• Plan around it: schedule painting or other independent work during the delay
• Note the delay in the project tracker

If delays cross 2 to 3 weeks, escalate. Cumulative delays often indicate contractor overcommitment or scope mistakes that will spiral.

Pre-Installation Final Walk-Through

After all material is delivered and inspected, before installation begins:

Sign and date this checklist. Have the contractor sign too. This is your evidentiary record.

Frequently Asked Questions

How long does a thorough material receiving inspection take?

For a typical 3BHK fit-out with kitchen, multiple wardrobes, and living room furniture, plan 60 to 90 minutes. For smaller projects (kitchen-only or single wardrobe), 30 to 45 minutes. The time is well-spent; catching one specification downgrade pays for the inspection 50 times over.

What if the contractor refuses to let me inspect the materials?

Refuse delivery. A contractor who will not let the owner inspect material is hiding something. Your contract should explicitly include the right to inspect before installation. If the contract is silent, your common law right to inspect goods being delivered to your premises is well-established under Indian law.

Do I need professional certification or training to do this inspection?

No. The inspection is mostly visual identification and basic measurement. Spend 30 minutes reading this guide and one or two other resources, and you have enough to catch 90 percent of the common downgrades. Online videos showing plywood vs MDF identification are abundant.

Should I hire a third-party inspector for material receiving?

For premium projects above Rs 25 lakh or for NRI projects without a knowledgeable on-ground representative, yes. Independent inspectors charge Rs 5,000 to Rs 15,000 per visit and catch issues that homeowners often miss. For mid-tier projects with a comfortable owner or representative on site, self-inspection is sufficient.

What is the most common downgrade I should specifically check for?

Particle board or MDF substituted for plywood, especially in non-visible carcass elements (back panels, drawer bottoms, internal partitions). The moisture test on a hidden edge of one cabinet catches this reliably. Hardware substitution (generic for Hettich) is second most common; check the boxes for brand markings before installation.

How do I know if the granite or quartz countertop is the grade I ordered?

Granite slabs come from named quarries (Black Galaxy from Andhra Pradesh, Tan Brown from Chimakurthy, Kashmir White from Andhra). Ask for the supplier’s quarry origin certificate. For quartz, brand certificates from Aristone, Quartzforms, Caesarstone India, Silestone, etc. should accompany the slab. Generic “quartz” without brand provenance is often Chinese imports of variable quality.

What if I find damage after installation has started?

Stop work immediately. Document with photographs. If the damage was hidden until exposed during installation (back panel damage, internal split), the contractor must replace. If the damage occurred during installation due to contractor handling, contractor liability is clearer. If you cannot prove timing, the issue becomes negotiable.

Should I keep records of the receiving inspection for warranty purposes?

Yes, for the entire warranty period (typically 5 to 10 years for hardware, 12 to 24 months for finishes). Brand certificates and delivery photos are required for most warranty claims. Store these digitally (Google Drive, Dropbox) plus a printed copy in your home file.

Related Guides From WoodAge

• Interior Specification Sheet Template: Boards, Laminate Codes, Hardware, Countertop and Warranty — Useful next reading on hardware planning, costs, materials, or execution.
• Wall Paneling Cost in India 2026: WPC vs PVC vs MDF vs CNC Wood Compared — Useful next reading on hardware planning, costs, materials, or execution.
• How a Modular Kitchen Is Made: Inside a Gurgaon Factory, 8-Stage Process Explained — Useful next reading on hardware planning, costs, materials, or execution.
• Factory-Made vs Carpenter Kitchen: Real Cost, Quality and 15-Year Lifespan Comparison — Useful next reading on interior planning, costs, materials, or execution.
• Best Modular Kitchen Manufacturer in Gurgaon 2026: 15-Point Checklist Before You Buy — Useful next reading on hardware planning, costs, materials, or execution.
• How to Maintain a Modular Kitchen: Complete Cleaning and Care Guide for Laminate, Acrylic, PU Paint, Granite and Hettich Hardware — Useful next reading on hardware planning, costs, materials, or execution.

WoodAge Interiors 16 SCO, Saraswati Vihar, DLF Phase 3, Gurugram 122002 Phone: +91-9910318044 Email: [email protected] Website: woodage.in

This article is updated quarterly with current factory dispatch practices, common downgrade patterns observed in Gurgaon, and inspection technique refinements. Last verified: May 2026.
