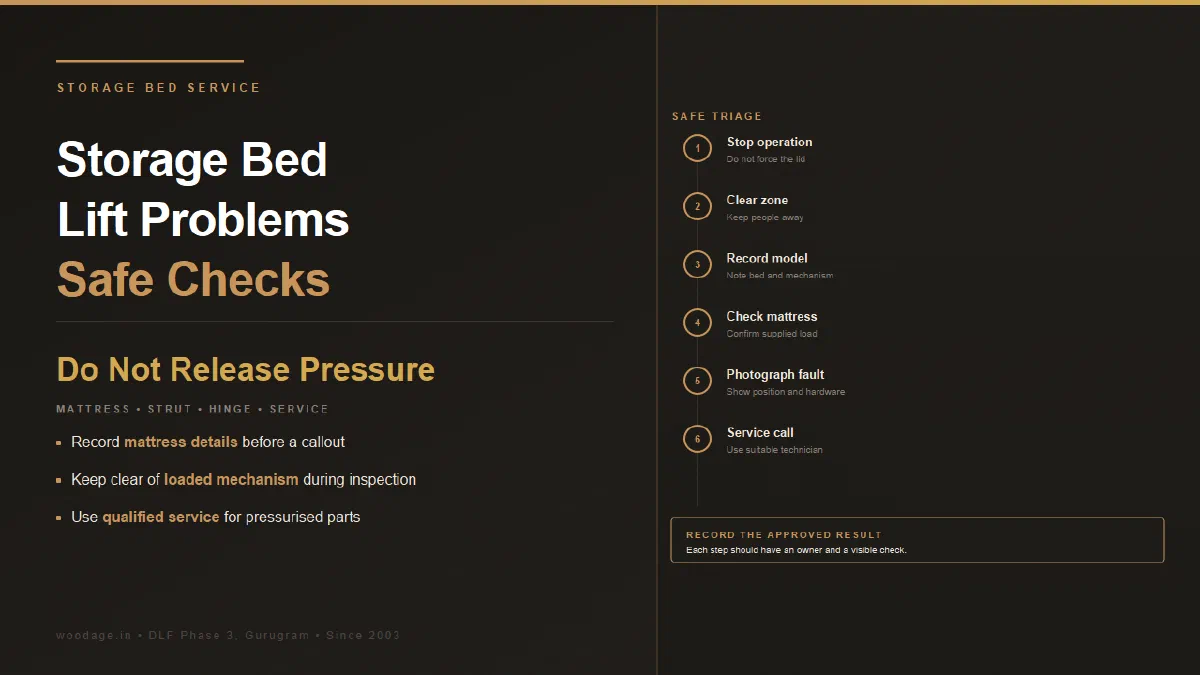

Storage Bed Lift Problems: Safe Checks Before a Service Call
A storage bed that will not lift or close needs safe service triage. Record mattress and mechanism details without releasing pressure or removing struts.
- Kautuk Sahni
- 8 min read

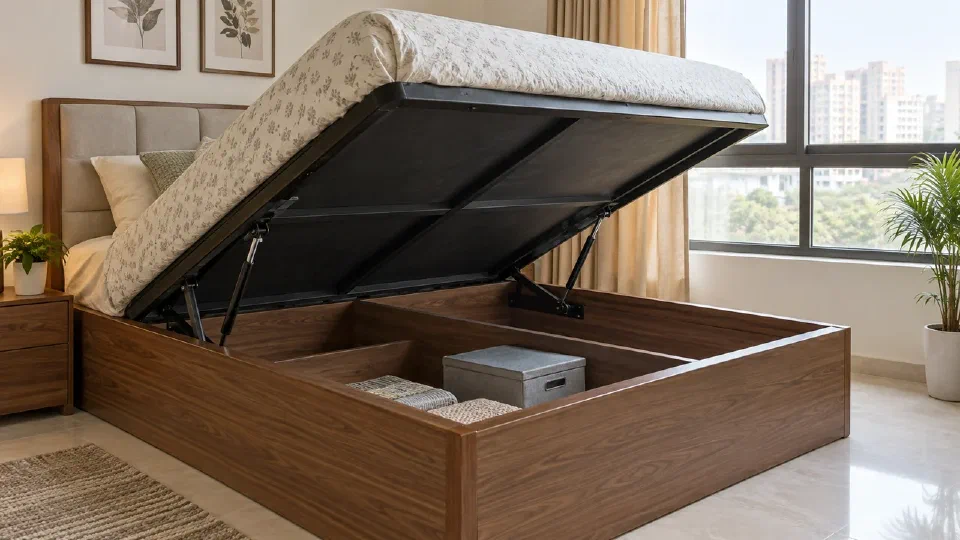

Quick answer: If a storage-bed platform will not stay open, drops unexpectedly or moves unevenly, stop using the lift and arrange service. Do not work underneath it or replace a gas spring by matching appearance. The mechanism depends on the platform, mattress load, mounting geometry and specified components working together.
WoodAge is a factory-direct furniture and interiors manufacturer in Gurugram, working since 2003. This guide helps owners describe a fault safely. It is not a DIY gas-spring replacement, pressure-release or mechanism-adjustment procedure.
Identify what changed
Record whether the bed ever operated correctly and whether the fault followed a mattress replacement, relocation or adjustment. Photograph accessible labels without entering the platform’s movement zone. Keep the mattress and other components in the condition the manufacturer specifies for normal operation; do not remove weight as an experiment with a loaded mechanism.
| Symptom | Information to give the technician |
|---|---|
| Will not open | Whether any visible transport or locking device remains; exact model and history |
| Will not stay open | Whether the mattress or platform weight changed; when the symptom began |
| Difficult to close | Whether the specified mattress is fitted and whether anything obstructs travel |
| One side moves differently | Visible alignment, loose parts or recent work, without manipulating the mechanism |
| Sudden drop, damage or leakage | Stop use and describe the event and affected component |
These observations do not identify the cause with certainty. A different mechanism may require a different service sequence.
Separate a bed that has never operated correctly from one that used to hold open and now descends. The first history points the technician toward assembly, catches, obstruction and specified load; the second raises wear or damage as possibilities. Neither history proves a failed strut. If one side is lower, photograph the position from outside the movement path and stop operation rather than forcing the high side to match.
Why a matching-looking gas spring is insufficient
The part’s force, stroke, length, end fittings and installation geometry matter. The lifting effect also changes through the platform’s travel. A force printed in newtons is not directly a permitted mattress weight in kilograms.
Stabilus describes furniture gas springs and dampers as components selected for particular movement and support functions. That does not establish a universal formula for replacing the springs in an unknown bed.
Do not buy a stronger spring to make the bed easier to lift without the system supplier’s approval. The change can affect closing effort, connections and movement. Have the responsible technician identify the complete mechanism and approved replacement.
What not to attempt
Do not puncture, heat, open or depressurise a gas spring. Do not detach a spring, alter mounting holes or release a joint while the platform is unsupported. Do not use a broom, loose timber or another improvised prop as a service support.
Stabilus’s gas-spring service information explains the importance of the rod surface and seals and says its gas springs do not require oiling. Product disposal instructions are not an invitation for a homeowner to release pressure.
Keep children and pets away from the moving platform. If access to stored items is necessary while the mechanism is faulty, have the service team make the assembly safe first.
DFS’s ottoman-bed safety guidance says its beds should be operated from the intended access point, with the specified mattress secure, and that users should keep their head and body out of the storage unit. Its instructions also include bedding in the load check and call for stopping use when the struts feel weak. These are useful questions for a service request, but the exact bed’s instructions govern operation and weight limits.
What to check before requesting service
Bed supplier/model: __. Mechanism label: __. Mattress model and any recent change: __. Fault began: __. Opens/closes/stays open: __. Recent relocation or repair: __. Accessible photos attached: __. Please confirm the approved component and safe service method before replacement.
Ask the quote to separate diagnosis, parts, transport if needed, labour and any repair to mounting points. Confirm whether the work covers one component or the complete mechanism. There is no verified universal local repair price for all storage-bed constructions.
Acceptance after service
Have the technician demonstrate normal operation with the specified assembly and load. Confirm any catches or supports, inspect for visible damage and receive the correct operating instructions. Retain replacement part numbers and the service warranty.
Ask which component assists lifting and which, if any, is the model’s specified hold-open support. For example, Dreams identifies a separate supporting bar on its Chloe ottoman bed. If the serviced bed has such a bar or catch, have the technician demonstrate its engagement and release according to that bed’s instructions. A replaced strut should not be used as proof that a separate support works.
Record the result in both end positions: the platform seats as intended when closed and remains controlled at the maker’s fully open position during the technician’s demonstration. The service note should identify what was replaced or adjusted and whether both sides, brackets and mounting points were inspected. A new spring alone is not an acceptance result if an attachment remains loose.

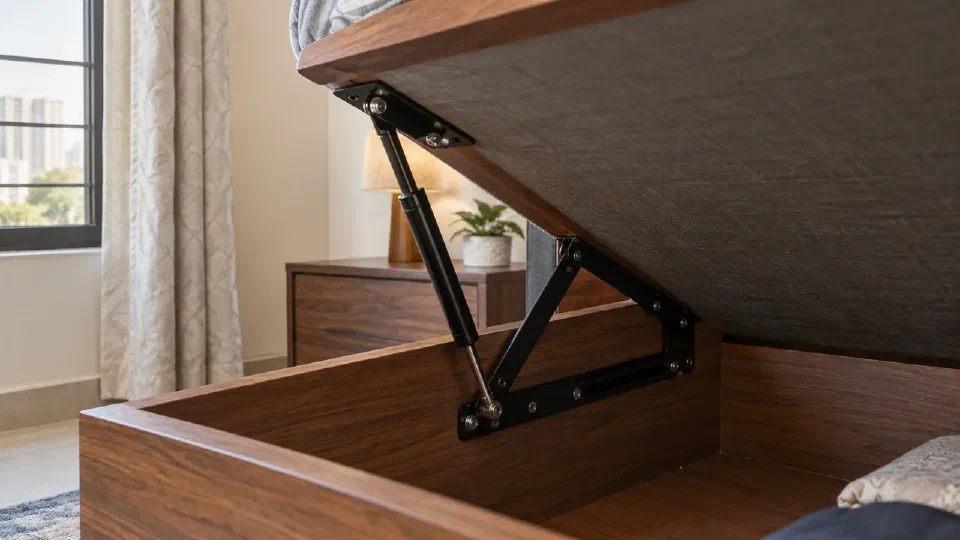

Read the gas spring’s label before asking for a replacement
A gas spring is specified by more than its length. Photograph the label on each cylinder, without removing or loading it, and give the service team these fields:
| Field on or near the label | Why it matters |
|---|---|
| Maker and part number | Identifies the exact spring the mechanism was designed around |
| Force rating, usually in newtons | Too high and the base springs open; too low and it will not lift or stay up |
| Extended length and stroke | Must suit the mechanism’s geometry, not just look similar |
| End fittings | Ball sockets, eyes or brackets must match the mounting points |
| Number fitted | Many lifts use a pair; mismatched springs load the frame unevenly |
Many strut suppliers recommend replacing both springs of a pair together so their forces match. The mechanism’s own label or manual, not a similar-looking part, decides the replacement.
Ready-made adult beds are also within India’s Furniture (Quality Control) Order, 2025: beds must meet IS 17635, a BIS standard, and carry the ISI mark when they fall within the order, which came into force on 14 February 2026. For a storage bed bought since then, record the CM/L number with the service request; it identifies the maker for warranty claims.
In Gurugram flats, a lift mechanism replaced on site still needs the bed’s mattress and contents removed first, so plan the visit with help available, whether in a Sohna Road tower or a builder floor.
Evidence and Verification Notes
The label fields reflect how gas springs are specified by their makers; Stabilus’s service guidance is cited above. The quality control order’s dates are as notified in February 2025. No repair method is prescribed here; follow the mechanism maker’s instructions and use a qualified service technician.
Frequently Asked Questions
Why does the bed stay closed after a mattress change?
A changed load can affect operation, but it is not the only possible cause. Give the technician both mattress specifications and the mechanism identity rather than trying a different spring yourself.
Can I remove one spring to make closing easier?
No. That changes the designed system and can create uneven or uncontrolled movement. Use the supplier’s service process.
Is a hydraulic bed meant to be opened without a mattress?
Follow the exact product instructions. Many designs depend on a specified moving load, but this cannot be generalised to every storage mechanism.
Is matching the gas spring’s length enough?
No. Force, stroke, end fittings, mounting geometry, paired operation and manufacturer instructions matter. Use the identified mechanism and authorised replacement route.
What should I do if the storage bed is stuck open?
Keep people clear, do not release pressure or remove struts, and contact the responsible service provider with photographs and the product or mechanism identity.
Can extra bedding change lift behaviour?
Yes. The mattress and items carried by the moving frame change the load. Record what changed, but do not remove safety components or improvise a counterweight.
Can I replace a storage bed gas spring with any spring of the same length?
No. Match the maker’s part number, or at least the force rating in newtons, extended length, stroke and end fittings, and replace both springs of a pair together. A spring of the same length but a different force can make the base spring open or refuse to stay up.
